差分电荷

打开完整交互页、原始数据与绘图源码

from __future__ import print_function
import os, re, math, json, hashlib, csv, gzip, io
BOHR = 0.529177210903

def det(cell):
    a,b,c=cell
    return a[0]*(b[1]*c[2]-b[2]*c[1])-a[1]*(b[0]*c[2]-b[2]*c[0])+a[2]*(b[0]*c[1]-b[1]*c[0])

def finite(values):
    return all(not (math.isnan(x) or math.isinf(x)) for x in values)

def open_text(filename):
    if os.path.isfile(filename):
        return io.open(filename, 'r', encoding='ascii')
    if os.path.isfile(filename+'.gz'):
        return io.TextIOWrapper(gzip.open(filename+'.gz', 'rb'), encoding='ascii')
    raise IOError('Missing '+filename+' or '+filename+'.gz')

def digest(filename):
    if os.path.isfile(filename):
        handle=open(filename,'rb')
    elif os.path.isfile(filename+'.gz'):
        handle=gzip.open(filename+'.gz','rb')
    elif filename.endswith('/POTCAR') and os.path.isfile(filename+'.sha256'):
        value=open(filename+'.sha256').read().split()[0]
        if not re.match(r'^[0-9a-f]{64}$',value):
            raise ValueError('Invalid pseudopotential fingerprint')
        return value
    else:
        raise IOError('Missing source '+filename)
    sha=hashlib.sha256()
    while True:
        chunk=handle.read(1024*1024)
        if not chunk:break
        sha.update(chunk)
    handle.close()
    return sha.hexdigest()

def read_charge(filename):
    f=open_text(filename)
    head=[f.readline(),f.readline()]
    scale=float(head[1].split()[0])
    if scale<=0:raise ValueError('This example requires a positive scalar scale')
    lines=[f.readline() for _ in range(3)];head+=lines
    cell=[[float(x)*scale for x in line.split()[:3]] for line in lines]
    species=f.readline();counts_line=f.readline();head += [species,counts_line]
    counts=list(map(int,counts_line.split()));nat=sum(counts)
    mode=f.readline();head.append(mode)
    if mode.lower().startswith('s'):mode=f.readline();head.append(mode)
    coords_lines=[f.readline() for _ in range(nat)];head+=coords_lines
    coords=[[float(x) for x in line.split()[:3]] for line in coords_lines]
    if mode.lower().startswith('d'):
        positions=[[sum(v[k]*cell[k][a] for k in range(3)) for a in range(3)] for v in coords]
    elif mode.lower().startswith(('c','k')):
        positions=[[x*scale for x in v] for v in coords]
    else:raise ValueError('Unknown coordinate mode')
    line=f.readline()
    while line and not line.strip():line=f.readline()
    grid=list(map(int,line.split()))
    if len(grid)!=3 or min(grid)<=0:raise ValueError('Invalid charge grid')
    n=grid[0]*grid[1]*grid[2]
    def block():
        values=[]
        while len(values)<n:
            line=f.readline()
            if not line:raise ValueError('Truncated scalar block')
            values.extend(float(x.replace('D','E')) for x in line.split())
        if len(values)!=n or not finite(values):raise ValueError('Invalid scalar block length/values')
        return values
    total=block()
    magnetic=None
    while True:
        line=f.readline()
        if not line:break
        words=line.split()
        if len(words)==3 and all(re.match(r'^\d+$',x) for x in words):
            candidate=list(map(int,words))
            if candidate==grid:
                magnetic=block();break
    f.close()
    if magnetic is None:raise ValueError('Expected second spin-density block')
    return dict(header=head,cell=cell,species=species.split(),counts=counts,
                positions=positions,grid=grid,total=total,magnetic=magnetic)

def incar(path):
    result={}
    for line in open(path):
        line=line.split('#',1)[0].split('!',1)[0]
        if '=' in line:
            key,value=line.split('=',1)
            if key.strip().upper() not in ('SYSTEM','MAGMOM'):
                result[key.strip().upper()]=value.strip()
    return result

cases={}
protocol=None
for name,expected_nelect,expected_mag in [('AB',2.,0.),('A',1.,1.),('B',1.,-1.)]:
    out=open(name+'/OUTCAR').read()
    if out.count('aborting loop because EDIFF is reached')!=1 or out.count('General timing and accounting')!=1:
        raise ValueError(name+': missing converged SCF / normal end')
    if re.search(r'VERY BAD NEWS|BRMIX:|Error EDD|ZHEGV failed',out,re.I):
        raise ValueError(name+': solver error')
    if 'Your FFT grids' in out:
        raise ValueError(name+': VASP reports an insufficient FFT grid')
    nelect=float(re.findall(r'NELECT\s*=\s*([-\d.]+)',out)[-1])
    mag=float(re.findall(r'mag=\s*([-\d.Ee+]+)',open(name+'/OSZICAR').read())[-1])
    data=read_charge(name+'/CHGCAR');n=len(data['total'])
    total=math.fsum(data['total'])/n
    spin=math.fsum(data['magnetic'])/n
    if abs(total-nelect)>1e-5 or abs(nelect-expected_nelect)>1e-8:
        raise ValueError(name+': electron count mismatch')
    if abs(mag-expected_mag)>2e-4 or abs(spin-mag)>2e-4:
        raise ValueError(name+': unexpected spin state')
    tags=incar(name+'/INCAR')
    if protocol is None:protocol=tags
    elif tags!=protocol:raise ValueError('Different electronic protocols')
    data.update(nelect=nelect,integral_e=total,mag_OSZICAR_muB=mag,mag_grid_muB=spin)
    cases[name]=data

ab,a,b=[cases[name] for name in ('AB','A','B')]
if not (ab['grid']==a['grid']==b['grid']):raise ValueError('FFT grids differ')
if not (ab['cell']==a['cell']==b['cell']):raise ValueError('Cells differ')
if not (ab['species']==a['species']==b['species']==['H']):raise ValueError('Expected the H model')
if ab['counts']!=[2] or a['counts']!=[1] or b['counts']!=[1]:raise ValueError('Wrong atom counts')
for point,target in [(a['positions'][0],ab['positions'][0]),(b['positions'][0],ab['positions'][1])]:
    if max(abs(x-y) for x,y in zip(point,target))>1e-6:raise ValueError('A fragment moved')
hashes={}
pot_hash=[]
for name in ('AB','A','B'):
    for filename in ('POSCAR','INCAR','KPOINTS','OUTCAR','OSZICAR','CHGCAR','POTCAR'):
        value=digest(name+'/'+filename)
        if filename=='POTCAR':pot_hash.append(value)
        else:hashes[name+'/'+filename]=value
if len(set(pot_hash))!=1:raise ValueError('Different pseudopotentials')
if len(set(open(name+'/KPOINTS').read() for name in ('AB','A','B')))!=1:
    raise ValueError('Different k sampling')
vol=abs(det(ab['cell']));nx,ny,nz=ab['grid'];n=nx*ny*nz
if max(abs(ab['cell'][i][j]-(10. if i==j else 0.)) for i in range(3) for j in range(3))>1e-8:
    raise ValueError('Plot extraction is specific to the 10 Angstrom cubic cell')
delta=[x-y-z for x,y,z in zip(ab['total'],a['total'],b['total'])]
integral=math.fsum(delta)/n
if abs(integral)>1e-5:raise ValueError('Charge difference does not integrate to zero')
positive=math.fsum(x for x in delta if x>0)/n
negative=math.fsum(x for x in delta if x<0)/n
nxy=nx*ny
plane=[math.fsum(delta[k*nxy:(k+1)*nxy])/nxy/vol for k in range(nz)]
linear=[100.*x for x in plane]
dz=10./nz
cumulative=[0.]
for k in range(1,nz+1):
    cumulative.append(cumulative[-1]+.5*(linear[k-1]+linear[k%nz])*dz)
with open('delta-planar.csv','w') as handle:
    writer=csv.writer(handle,lineterminator='\n')
    writer.writerow(['z_A','delta_n_e_A3','delta_N_e_A','cumulative_e'])
    for k in range(nz+1):
        writer.writerow(['%.10f'%(k*dz),'%.12e'%plane[k%nz],
                         '%.12e'%linear[k%nz],'%.12e'%cumulative[k]])
j=ny//2
with open('delta-y5.csv','w') as handle:
    writer=csv.writer(handle,lineterminator='\n')
    writer.writerow(['x_A','z_A','delta_n_e_A3'])
    for k in range(nz):
        for i in range(nx):
            writer.writerow(['%.10f'%(10.*i/nx),'%.10f'%(10.*k/nz),
                             '%.12e'%(delta[(k*ny+j)*nx+i]/vol)])
with open('CHGDIFF.vasp','w') as handle:
    handle.writelines(ab['header']);handle.write('\n%d %d %d\n'%(nx,ny,nz))
    for k in range(0,n,5):handle.write(' '.join('%.11E'%x for x in delta[k:k+5])+'\n')
# A Gaussian cube uses bohr and electrons/bohr^3; its z index runs fastest.
with open('delta-charge.cube','w') as handle:

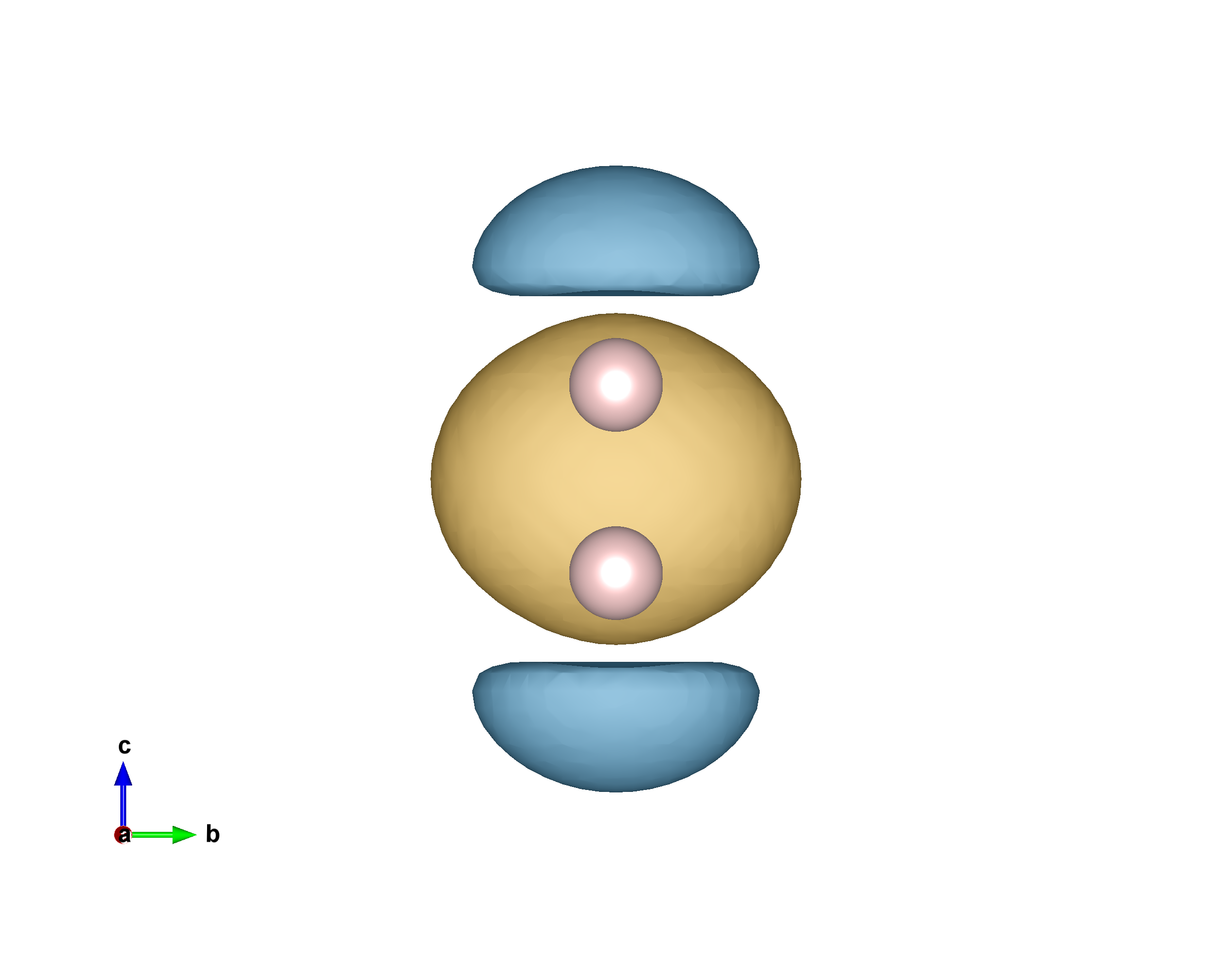

    handle.write('H2 minus frozen spin-polarized H fragments\n')
    handle.write('Signed electron-number density in electrons/bohr^3\n')
    handle.write('%5d %13.8f %13.8f %13.8f\n'%(2,0.,0.,0.))
    for count,vector in zip((nx,ny,nz),ab['cell']):
        handle.write('%5d %13.8f %13.8f %13.8f\n'%tuple([count]+[v/count/BOHR for v in vector]))
    for position in ab['positions']:
        handle.write('%5d %13.8f %13.8f %13.8f %13.8f\n'%tuple([1,1.]+[v/BOHR for v in position]))
    line=[]
    for i in range(nx):
        for j in range(ny):
            for k in range(nz):
                line.append('%.10E'%(delta[(k*ny+j)*nx+i]/vol*BOHR**3))
                if len(line)==6:handle.write(' '.join(line)+'\n');line=[]
    if line:handle.write(' '.join(line)+'\n')
summary={'grid':ab['grid'],'volume_A3':vol,'positions_A':ab['positions'],
         'delta_integral_e':integral,'positive_integral_e':positive,'negative_integral_e':negative,
         'minimum_delta_n_e_A3':min(delta)/vol,'maximum_delta_n_e_A3':max(delta)/vol,
         'cumulative_endpoint_e':cumulative[-1],'potcar_sha256':pot_hash[0],
         'definition':'total-charge first block: AB - A - B; density = stored_value / cell_volume',
         'sha256':hashes,'cases':{}}
for name in ('AB','A','B'):
    summary['cases'][name]={key:cases[name][key] for key in
        ('nelect','integral_e','mag_OSZICAR_muB','mag_grid_muB')}
with open('charge-difference-summary.json','w') as handle:json.dump(summary,handle,indent=2,sort_keys=True)
for name in ('AB','A','B'):
    row=summary['cases'][name]
    print('%s NELECT=%.1f integral=%.10f e mag(OSZICAR)=%.4f mag(grid)=%.10f'%
          (name,row['nelect'],row['integral_e'],row['mag_OSZICAR_muB'],row['mag_grid_muB']))
print('grid = %d %d %d; points = %d; volume = %.6f A^3'%(nx,ny,nz,n,vol))
print('integral_delta = %.12e e; accumulated = %.10f e; depleted = %.10f e'%(integral,positive,negative))
print('delta_n range = %.10f to %.10f e/A^3'%(min(delta)/vol,max(delta)/vol))
print('cumulative endpoint = %.12e e'%cumulative[-1])
print('Wrote CHGDIFF.vasp, delta-charge.cube, delta-planar.csv, delta-y5.csv, charge-difference-summary.json')

#!/usr/bin/env python3
"""Build a VESTA-readable VASP volumetric file for Δρ = ρ(AB) − ρ(A) − ρ(B).

Inputs are CHGCAR files (plain text or gzip-compressed).  The script reads only
VASP's first total-charge grid block; magnetization and PAW augmentation blocks
are not part of the plotted scalar field.  The output keeps VASP's stored
volume-scaled values, so divide a grid value by cell volume (ų) to get e/ų.
"""
from __future__ import annotations

import argparse
import gzip
import hashlib
import itertools
import json
import math
import re
from pathlib import Path
from typing import Iterable, TextIO

import numpy as np

_INTEGER = re.compile(r"^[+-]?\d+$")


def _open_text(path: Path) -> TextIO:
    if path.suffix.lower() == ".gz":
        return gzip.open(path, "rt", encoding="ascii", errors="strict")
    return path.open("rt", encoding="ascii", errors="strict")


def _line(stream: TextIO, label: str) -> str:
    value = stream.readline()
    if not value:
        raise ValueError(f"Unexpected end of file while reading {label}")
    return value


def _ints(tokens: list[str]) -> bool:
    return bool(tokens) and all(_INTEGER.fullmatch(token) for token in tokens)


def _float(token: str) -> float:
    return float(token.replace("D", "E").replace("d", "e"))


def _float_values(stream: TextIO) -> Iterable[float]:
    for line in stream:
        for token in line.split():
            yield _float(token)


def _sha256_file(path: Path) -> str:
    digest = hashlib.sha256()
    with path.open("rb") as stream:
        for block in iter(lambda: stream.read(1024 * 1024), b""):
            digest.update(block)
    return digest.hexdigest()


def _sha256_uncompressed(path: Path) -> str:
    opener = gzip.open if path.suffix.lower() == ".gz" else open
    digest = hashlib.sha256()
    with opener(path, "rb") as stream:
        for block in iter(lambda: stream.read(1024 * 1024), b""):
            digest.update(block)
    return digest.hexdigest()


def read_chgcar(path: Path) -> dict:
    """Parse cell/atoms, one 3-D total-charge block, and its exact VASP header."""
    header: list[str] = []
    with _open_text(path) as stream:
        title = _line(stream, "title")
        header.append(title)
        scale_tokens = _line(stream, "scale factor").split()
        header.append(" ".join(scale_tokens) + "\n")
        if not scale_tokens:
            raise ValueError(f"{path}: missing scale factor")
        scale = _float(scale_tokens[0])

        raw_cell = []
        for axis in "abc":
            row = _line(stream, f"lattice vector {axis}")
            header.append(row)
            values = [_float(token) for token in row.split()[:3]]
            if len(values) != 3:
                raise ValueError(f"{path}: invalid lattice vector {axis}")
            raw_cell.append(values)
        raw_cell = np.asarray(raw_cell, dtype=np.float64)
        raw_volume = abs(float(np.linalg.det(raw_cell)))
        if raw_volume <= 0 or scale == 0:
            raise ValueError(f"{path}: invalid cell volume or scale factor")
        factor = scale if scale > 0 else (abs(scale) / raw_volume) ** (1.0 / 3.0)
        cell = raw_cell * factor

        species_or_counts = _line(stream, "species/count line")
        header.append(species_or_counts)
        fields = species_or_counts.split()
        if _ints(fields):
            counts = [int(token) for token in fields]
            species = [f"X{i + 1}" for i in range(len(counts))]
        else:
            species = fields
            count_line = _line(stream, "atom counts")
            header.append(count_line)
            count_fields = count_line.split()
            if not _ints(count_fields):
                raise ValueError(f"{path}: atom-count line is not integer-valued")
            counts = [int(token) for token in count_fields]
        if len(species) != len(counts) or any(count <= 0 for count in counts):
            raise ValueError(f"{path}: invalid species/count list")
        atom_species = [symbol for symbol, count in zip(species, counts) for _ in range(count)]

        coordinate_line = _line(stream, "coordinate mode or selective-dynamics line")
        header.append(coordinate_line)
        if coordinate_line.strip().lower().startswith("s"):
            coordinate_line = _line(stream, "coordinate mode")
            header.append(coordinate_line)
        mode = coordinate_line.strip().lower()
        if not mode or mode[0] not in {"d", "c", "k"}:
            raise ValueError(f"{path}: unknown coordinate mode {coordinate_line!r}")

        fractional_or_cartesian = []
        for atom_index in range(len(atom_species)):
            atom_line = _line(stream, f"atom coordinate {atom_index + 1}")
            header.append(atom_line)
            xyz = [_float(token) for token in atom_line.split()[:3]]
            if len(xyz) != 3:
                raise ValueError(f"{path}: invalid coordinate for atom {atom_index + 1}")
            fractional_or_cartesian.append(xyz)
        coordinates = np.asarray(fractional_or_cartesian, dtype=np.float64)
        cartesian = coordinates @ cell if mode[0] == "d" else coordinates * factor

        dimensions = None
        for _ in range(40):
            candidate = _line(stream, "grid dimensions")
            header.append(candidate)
            fields = candidate.split()
            if _ints(fields) and len(fields) == 3 and all(int(value) > 0 for value in fields):
                dimensions = tuple(int(value) for value in fields)
                break
        if dimensions is None:
            raise ValueError(f"{path}: no 3-D grid dimensions after the structure header")

        npoints = math.prod(dimensions)
        values = np.fromiter(itertools.islice(_float_values(stream), npoints),
                             dtype=np.float64, count=npoints)
        if values.size != npoints:
            raise ValueError(f"{path}: expected {npoints} charge values, read {values.size}")

    return {
        "path": path,
        "header": header,
        "cell": cell,
        "volume_A3": abs(float(np.linalg.det(cell))),
        "species": atom_species,
        "cartesian_A": cartesian,
        "dimensions": dimensions,
        "values": values,
        "sha256_gz_or_file": _sha256_file(path),
        "sha256_uncompressed": _sha256_uncompressed(path),
    }


def check_same_cell_and_grid(data: dict[str, dict]) -> None:
    reference = data["AB"]
    for label in ("A", "B"):
        item = data[label]
        if item["dimensions"] != reference["dimensions"]:
            raise ValueError(f"{label} grid {item['dimensions']} != AB grid {reference['dimensions']}")
        if not np.allclose(item["cell"], reference["cell"], rtol=0.0, atol=1e-8):
            raise ValueError(f"{label} cell vectors differ from AB")
    if len(reference["species"]) != len(data["A"]["species"]) + len(data["B"]["species"]):
        raise ValueError("AB atom count must equal A plus B")

    # Verify that A and B retain the corresponding AB atomic coordinates.
    remaining = list(range(len(reference["species"])))
    for label in ("A", "B"):
        item = data[label]
        for symbol, xyz in zip(item["species"], item["cartesian_A"]):
            matches = [i for i in remaining
                       if reference["species"][i] == symbol
                       and np.allclose(reference["cartesian_A"][i], xyz, rtol=0.0, atol=1e-6)]
            if not matches:
                raise ValueError(f"{label} atom {symbol} at {xyz} Å is not an AB atom at that position")
            remaining.remove(matches[0])
    if remaining:
        raise ValueError(f"A/B references did not account for AB atom indices {remaining}")


def write_grid(path: Path, header: list[str], values: np.ndarray) -> None:
    if path.exists():
        raise FileExistsError(f"Refusing to overwrite {path}; choose another output path")
    path.parent.mkdir(parents=True, exist_ok=True)
    out_header = list(header)
    out_header[0] = "H2 delta density rho_AB-rho_A-rho_B; VASP volume-scaled grid values\n"
    with path.open("wt", encoding="ascii", newline="\n") as stream:
        stream.writelines(out_header)
        for start in range(0, values.size, 5):
            chunk = values[start:start + 5]
            stream.write(" ".join(f"{value: .11E}" for value in chunk) + "\n")


def build(ab: Path, a: Path, b: Path, output: Path, summary: Path) -> dict:
    for path in (output, summary):
        if path.exists():
            raise FileExistsError(f"Refusing to overwrite {path}; choose a new output path")
    if output.resolve() == summary.resolve():
        raise ValueError("Output and summary must have different paths")
    data = {"AB": read_chgcar(ab), "A": read_chgcar(a), "B": read_chgcar(b)}
    check_same_cell_and_grid(data)
    npoints = math.prod(data["AB"]["dimensions"])
    volume = data["AB"]["volume_A3"]
    delta_stored = data["AB"]["values"] - data["A"]["values"] - data["B"]["values"]
    delta_rho = delta_stored / volume

    total_e = float(np.sum(delta_stored, dtype=np.float64) / npoints)
    positive_e = float(np.sum(np.maximum(delta_stored, 0.0), dtype=np.float64) / npoints)
    negative_e = float(np.sum(np.minimum(delta_stored, 0.0), dtype=np.float64) / npoints)
    if abs(total_e) > 1e-6:
        raise ValueError(f"Difference density does not conserve charge: integral={total_e:.9g} e")

    if not all(np.isfinite(item["values"]).all() for item in data.values()):
        raise ValueError("Input grid contains non-finite values")
    write_grid(output, data["AB"]["header"], delta_stored)
    record = {
        "source": {label: {"path": str(item["path"]),
                           "sha256_file": item["sha256_gz_or_file"],
                           "sha256_uncompressed": item["sha256_uncompressed"]}
                   for label, item in data.items()},
        "output": str(output),
        "formula": "rho_AB(r) - rho_A(r) - rho_B(r)",
        "grid": list(data["AB"]["dimensions"]),
        "volume_A3": volume,
        "points": npoints,
        "grid_value_convention": "VASP CHGCAR values are rho(r) * cell_volume; divide this output's grid values by volume_A3 to obtain e/Angstrom^3.",
        "minimum_delta_rho_e_A3": float(np.min(delta_rho)),
        "maximum_delta_rho_e_A3": float(np.max(delta_rho)),
        "delta_integral_e": total_e,
        "negative_integral_e": negative_e,
        "positive_integral_e": positive_e,
        "vesta_symmetric_threshold_grid_value": 30.0,
        "equivalent_threshold_e_A3": 30.0 / volume,
        "input_grid_integrals_e": {
            label: float(np.sum(item["values"], dtype=np.float64) / npoints)
            for label, item in data.items()
        },
        "output_sha256": _sha256_file(output),
    }
    summary.parent.mkdir(parents=True, exist_ok=True)
    if summary.exists():
        raise FileExistsError(f"Refusing to overwrite {summary}; choose another summary path")
    summary.write_text(json.dumps(record, indent=2) + "\n", encoding="utf-8")
    return record


def main() -> None:
    parser = argparse.ArgumentParser(description=__doc__)
    parser.add_argument("--ab", type=Path, required=True, help="AB CHGCAR or CHGCAR.gz")
    parser.add_argument("--a", type=Path, required=True, help="A CHGCAR or CHGCAR.gz")
    parser.add_argument("--b", type=Path, required=True, help="B CHGCAR or CHGCAR.gz")
    parser.add_argument("--output", type=Path, required=True, help="New VESTA-readable VASP volumetric file")
    parser.add_argument("--summary", type=Path, required=True, help="New JSON validation summary")
    args = parser.parse_args()
    result = build(args.ab, args.a, args.b, args.output, args.summary)
    print(f"grid: {result['grid'][0]} {result['grid'][1]} {result['grid'][2]}")
    print(f"volume: {result['volume_A3']:.6f} Å^3")
    print(f"integrals A/B/AB: {result['input_grid_integrals_e']['A']:.9f} / "
          f"{result['input_grid_integrals_e']['B']:.9f} / {result['input_grid_integrals_e']['AB']:.9f} e")
    print(f"delta integral: {result['delta_integral_e']:.3e} e")
    print(f"delta rho min/max: {result['minimum_delta_rho_e_A3']:.6f} / "
          f"{result['maximum_delta_rho_e_A3']:.6f} e/Å^3")
    print(f"±{result['equivalent_threshold_e_A3']:.3f} e/Å^3 maps to ±{result['vesta_symmetric_threshold_grid_value']:.1f} stored VASP grid values (VESTA display units must be checked)")
    print(f"wrote: {result['output']}")
    print(f"summary: {args.summary}")


if __name__ == "__main__":
    main()

Δn(r) = n_AB(r) − n_A(r) − n_B(r)

[bcgong@localhost grid144]$ grep -A 8 -B 2 "Your FFT grids" ../AB/OUTCAR
|           W    W  A    A  R    R  N    N  II  N    N   GGGG   !!!           |
|                                                                             |
|      Your FFT grids (NGX,NGY,NGZ) are not sufficient for an accurate        |
|      calculation.                                                           |
|      The results might be wrong                                             |
|      good settings for NGX NGY and  NGZ are                                 |
|                        70  70  and  70                                      |
|     Mind: This setting results in a small but reasonable wrap around error  |
|     It is also necessary to adjust these  values to the FFT routines you use|
|                                                                             |
 -----------------------------------------------------------------------------
[bcgong@localhost grid144]$

[bcgong@localhost grid144]$ head -n 24 AB/out
 running on    4 total cores
 distrk:  each k-point on    4 cores,    1 groups
 distr:  one band on    1 cores,    4 groups
 using from now: INCAR
 vasp.5.4.4.18Apr17-6-g9f103f2a35 (build Feb 26 2024 21:30:50) complex

 POSCAR found type information on POSCAR  H
 POSCAR found :  1 types and       2 ions
 scaLAPACK will be used
 LDA part: xc-table for Pade appr. of Perdew
 POSCAR, INCAR and KPOINTS ok, starting setup
 FFT: planning ...
 WAVECAR not read
 entering main loop
       N       E                     dE             d eps       ncg     rms          rms(c)
DAV:   1     0.330307833686E+01    0.33031E+01   -0.36026E+02    32   0.737E+01
DAV:   2    -0.473855047208E+01   -0.80416E+01   -0.80416E+01    32   0.253E+01
DAV:   3    -0.523992505854E+01   -0.50137E+00   -0.50137E+00    40   0.977E+00
DAV:   4    -0.524239736218E+01   -0.24723E-02   -0.24723E-02    32   0.677E-01
DAV:   5    -0.524242226125E+01   -0.24899E-04   -0.24899E-04    32   0.648E-02    0.455E+00
DAV:   6    -0.656955046096E+01   -0.13271E+01   -0.55591E+00    32   0.924E+00    0.337E+00
DAV:   7    -0.655514804124E+01    0.14402E-01   -0.10946E+00    32   0.371E+00    0.163E+00
DAV:   8    -0.660675599031E+01   -0.51608E-01   -0.24393E-01    32   0.135E+00    0.950E-01
DAV:   9    -0.674177913766E+01   -0.13502E+00   -0.19305E-01    32   0.123E+00    0.399E-01
[bcgong@localhost grid144]$

[bcgong@localhost grid144]$ grep -E "NELECT|dimension x,y,z|aborting loop|Elapsed time" AB/OUTCAR
   dimension x,y,z NGX =    72 NGY =   72 NGZ =   72
   dimension x,y,z NGXF=   144 NGYF=  144 NGZF=  144
   dimension x,y,z NGX =    70 NGY =   70 NGZ =   70
   NELECT =       2.0000    total number of electrons
------------------------ aborting loop because EDIFF is reached ----------------------------------------
                         Elapsed time (sec):       37.584
[bcgong@localhost grid144]$

编写 Python 3 命令行程序 build_delta_chgcar.py，依赖 NumPy。输入 --ab、--a、--b 是 VASP CHGCAR 或 gzip 压缩 CHGCAR.gz；解析 POSCAR 风格结构头，支持元素/原子数、Direct/Cartesian 坐标以及可选 Selective dynamics。读取结构后的第一块 nx ny nz 总电子密度，恰好 N=nx*ny*nz 个有限值，x 最快；不混入 augmentation 或第二块磁化密度。检查三项晶胞矩阵相同、网格相同、AB 原子数等于 A+B，A/B 元素与坐标保持 AB 中原位。D 是体积缩放的 VASP 存储值，n=D/V，单位 e/ų；逐点计算 D_AB-D_A-D_B，输出仅用于 VESTA 的单块 CHGCAR_DELTA，保留 AB 结构头。分别计算各输入 ΣD/N、差分全胞/正值/负值积分、极值及源文件 SHA256，写 JSON。若本例差分全胞残差大于 1e-6 e 则报错；打印科学计数法残差，不能把舍入成零称作精确证明。所有目标文件写入前检查存在性，拒绝覆盖。命令参数为 --output 与 --summary。不得归一化到期望电子数或画替代图。GUI 使用 VESTA 打开输出并核对单位：±0.03 e/ų 等于 ±30 的原始存储值；本次 VESTA 场景将其转换为 ±0.00444555 e/bohr³。保存场景，导出实际等值面 PNG；记录配色、阈值与显示范围。

python3 -m pip install numpy
python3 -B scripts/build_delta_chgcar.py --ab ../h2-delta-charge/AB/CHGCAR.gz --a ../h2-delta-charge/A/CHGCAR.gz --b ../h2-delta-charge/B/CHGCAR.gz --output new-h2/CHGCAR_DELTA --summary new-h2/summary.json

grid: 144 144 144
volume: 1000.000000 Å^3
integrals A/B/AB: 1.000000001 / 1.000000001 / 2.000000003 e
delta integral: 4.363e-10 e
delta rho min/max: -0.055559 / 0.802964 e/Å^3

固定 AB 几何 → 原位保留 A、B → 匹配参数的三份 SCF
                                  ↓
                        CHGCAR 结构、网格、电子数
                                  ↓
                       第一密度块 AB − A − B
                                  ↓
                    VESTA 正负等值面 + 完整网格积分

#!/usr/bin/env python3
"""Integrate matched frozen-fragment CHGCAR first blocks along the a×b normal.
Dependencies: numpy, sibling build_delta_chgcar.py. Input files are read only.
NELECT additivity is checked; fragment neutrality/charge states are not inferred.
Establish each charge state from its own input/OUTCAR and valence protocol.
Boundaries refer to physical normal distance in Angstrom; piecewise linear
interpolation of periodic plane values defines the cumulative integral.
"""
import argparse, csv, json
from pathlib import Path
import numpy as np
from build_delta_chgcar import read_chgcar, check_same_cell_and_grid

def main():
    p=argparse.ArgumentParser(description=__doc__)
    for label in ('ab','a','b'): p.add_argument('--'+label,type=Path,required=True)
    p.add_argument('--nelect',type=float,nargs=3,required=True,metavar=('AB','A','B'))
    p.add_argument('--boundaries',type=float,nargs='+',required=True)
    p.add_argument('--output-dir',type=Path,required=True)
    a=p.parse_args()
    if a.output_dir.exists(): raise FileExistsError('Choose a new output directory')
    if not all(np.isfinite(a.nelect)) or abs(a.nelect[0]-sum(a.nelect[1:]))>1e-8:
        raise ValueError('Additive fragment electron counts are required; fragment charge states must be established from the input protocol')
    data={k:read_chgcar(getattr(a,k.lower())) for k in ('AB','A','B')}
    check_same_cell_and_grid(data)
    for k,n in zip(('AB','A','B'),a.nelect):
        if not np.isfinite(data[k]['values']).all(): raise ValueError('Nonfinite density')
        integral=float(data[k]['values'].mean())
        if abs(integral-n)>1e-5: raise ValueError(k+': integral differs from stated NELECT')
    ref=data['AB'];cell=ref['cell'];volume=ref['volume_A3']
    area=float(np.linalg.norm(np.cross(cell[0],cell[1])));height=volume/area
    nx,ny,nz=ref['dimensions'];dz=height/nz
    edges=np.array(a.boundaries,dtype=float)
    if len(edges)<2 or not np.isfinite(edges).all() or np.any(np.diff(edges)<=0):
        raise ValueError('Need at least two ordered finite boundaries')
    if edges[0]<0 or edges[-1]>height+1e-8: raise ValueError('Boundary outside cell')
    delta=ref['values']-data['A']['values']-data['B']['values']
    density=delta.reshape(nz,ny,nx).mean(axis=(1,2))/volume
    z=np.arange(nz+1)*dz;plane=np.r_[density,density[0]];linear=area*plane
    cumulative=np.r_[0.,np.cumsum(.5*(linear[:-1]+linear[1:])*dz)]
    def at(x):
        if abs(x-height)<1e-8: return float(cumulative[-1])
        k=int(np.floor(x/dz));h=x-z[k]
        return float(cumulative[k]+linear[k]*h+.5*(linear[k+1]-linear[k])*h*h/dz)
    rows=[]
    for lo,hi in zip(edges[:-1],edges[1:]):
        number=at(hi)-at(lo)
        rows.append(dict(lo_A=float(lo),hi_A=float(hi),delta_e=number,
                         delta_e_per_A2=number/area,delta_e_per_cm2=number/area*1e16))
    residual=float(delta.mean())
    if abs(residual)>1e-6: raise ValueError('Difference electron count does not close')
    if abs(cumulative[-1]-residual)>1e-10: raise ValueError('Periodic integral mismatch')
    summary=dict(definition='delta_n=n_AB-n_A-n_B; positive means electron gain',
      input_integrals_e={k:float(v['values'].mean()) for k,v in data.items()},
      area_A2=area,height_A=height,volume_A3=volume,grid=list(ref['dimensions']),
      full_cell_residual_e=residual,cumulative_endpoint_e=float(cumulative[-1]),
      positive_3d_e=float(np.maximum(delta,0).mean()),negative_3d_e=float(np.minimum(delta,0).mean()),
      boundaries_A=edges.tolist(),regions=rows,
      source_sha256_uncompressed={k:v['sha256_uncompressed'] for k,v in data.items()},
      quadrature='periodic piecewise linear plane density; exact partial-segment integral',
      scope='spatial redistribution relative to frozen fragments; not mobile carrier density')
    a.output_dir.mkdir(parents=True)
    with (a.output_dir/'planar.csv').open('x',newline='') as f:
        w=csv.writer(f);w.writerow(['z_A','delta_n_e_A3','linear_e_A','cumulative_e'])
        w.writerows(zip(z,plane,linear,cumulative))
    with (a.output_dir/'regions.csv').open('x',newline='') as f:
        w=csv.DictWriter(f,fieldnames=list(rows[0]));w.writeheader();w.writerows(rows)
    (a.output_dir/'summary.json').write_text(json.dumps(summary,indent=2)+'\n')
    print(f'area={area:.9f} A^2; height={height:.9f} A; grid={nx} {ny} {nz}')
    print(f'full-cell residual={residual:.12e} e; cumulative endpoint={cumulative[-1]:.12e} e')
    for r in rows: print(f'{r["lo_A"]:.6f}:{r["hi_A"]:.6f} A: delta_e={r["delta_e"]:+.12e}; area_density={r["delta_e_per_cm2"]:+.12e} e/cm^2')
    print(f'positive 3D redistribution={summary["positive_3d_e"]:.10f} e')

if __name__=='__main__': main()

# Native gnuplot replay of the existing H2 plane-average/integration table.
# CSV: z_A,delta_n_e_A3,linear_e_A,cumulative_e. No smoothing or fitting.
# Put this script in public/examples/charge-literature and run gnuplot.
if (!exists("datafile")) datafile = "../charge-planar/h2-half-spaces/planar.csv"
if (!exists("prefix")) prefix = "h2-planar-and-cumulative"
set datafile separator comma
set encoding utf8
set border 3 back lc rgb "#555555" lw 1
set tics nomirror out scale 0.55
set style fill solid 0.35 noborder
set xrange [0:10]
set key at graph 0.98,0.95 right top horizontal font ",10"
set grid ytics lc rgb "#dddddd" lw 0.5
set format y "%.2f"
set arrow 1 from 4.63, graph 0 to 4.63, graph 1 nohead dt 3 lw 1 lc rgb "#777777" back
set arrow 2 from 5.37, graph 0 to 5.37, graph 1 nohead dt 3 lw 1 lc rgb "#777777" back
set arrow 3 from 5.0, graph 0 to 5.0, graph 1 nohead dt 2 lw 1 lc rgb "#444444" back
set arrow 4 from graph 0, first 0 to graph 1, first 0 nohead lw 0.8 lc rgb "#333333" back
# Three exports use the same measured table and plotting settings.
do for [export_index=1:3] {
 if (export_index==1) { set terminal svg size 1000,700 font "Liberation Sans,15"; set output prefix.".svg" }
 if (export_index==2) { set terminal pdfcairo enhanced color size 7.0in,4.9in font "Liberation Sans,10.5"; set output prefix.".pdf" }
 if (export_index==3) { set terminal pngcairo size 1000,700 font "Liberation Sans,15"; set output prefix.".png" }
 set multiplot layout 2,1 margins 0.13,0.97,0.12,0.86 spacing 0.10 title "Frozen H₂: planar redistribution and cumulative integral" font ",17"
 set ylabel "Area-integrated Δn (e/Å)" offset 0.4,0
 set format x ""
 set xlabel ""
 set label 1 "(a) S × plane-average Δn" at graph 0.02,0.90 front font ",11"
 plot datafile every ::1 using 1:3 with filledcurves above y1=0 lc rgb "#d8a126" title "electron gain", \
      datafile every ::1 using 1:3 with filledcurves below y1=0 lc rgb "#31a9bd" title "electron depletion", \
      datafile every ::1 using 1:3 with lines lw 1.8 lc rgb "#333333" notitle
 unset label 1
 set key off
 set format x "%g"
 set xlabel "z (Å); dotted: H at 4.63 / 5.37 Å, dashed: half-cell boundary at 5 Å"
 set ylabel "T(z) (e)" offset 0.4,0
 set label 2 "(b) Integral from cell origin to z" at graph 0.02,0.90 front font ",11"
 plot datafile every ::1 using 1:4 with lines lw 2 lc rgb "#205a83" notitle
 unset label 2
 unset multiplot
 unset output
 set key at graph 0.98,0.95 right top horizontal font ",10"
}

#!/usr/bin/env python3
"""Check the archived H2 CSV and save exact slider reference values.

This is numerical post-processing only; it does not run DFT or produce a plot.
Supply archived planar.csv and summary.json; choose a new output directory.
"""

import argparse
import bisect
import csv
import json
import math
from pathlib import Path


def require(condition, message):
    if not condition:
        raise ValueError(message)


def main():
    parser = argparse.ArgumentParser(description=__doc__)
    parser.add_argument('--planar', type=Path, required=True)
    parser.add_argument('--summary', type=Path, required=True)
    parser.add_argument('--output-dir', type=Path, required=True)
    args = parser.parse_args()
    DATA = args.output_dir
    require(not DATA.exists(), 'Choose a new output directory')
    with args.planar.open(newline="") as handle:
        reader = csv.DictReader(handle)
        require(
            reader.fieldnames
            == ["z_A", "delta_n_e_A3", "linear_e_A", "cumulative_e"],
            "Unexpected CSV columns",
        )
        rows = [{key: float(value) for key, value in row.items()} for row in reader]
    summary = json.loads(args.summary.read_text())
    require(all(math.isfinite(v) for r in rows for v in r.values()), "Non-finite data")
    z = [r["z_A"] for r in rows]
    line = [r["linear_e_A"] for r in rows]
    stored = [r["cumulative_e"] for r in rows]
    require(len(rows) == summary["grid"][2] + 1, "Missing periodic endpoint")
    require(all(a < b for a, b in zip(z, z[1:])), "Coordinate order")
    require(abs(z[0]) < 1e-12, "Nonzero integral origin")
    require(abs(z[-1] - summary["height_A"]) < 1e-12, "Cell height mismatch")
    require(abs(line[-1] - line[0]) < 1e-12, "Periodic endpoint mismatch")
    area_error = max(
        abs(r["linear_e_A"] - summary["area_A2"] * r["delta_n_e_A3"])
        for r in rows
    )
    require(area_error < 1e-12, "Area factor or units mismatch")

    increments = [
        0.5 * (a + b) * (zb - za)
        for za, zb, a, b in zip(z, z[1:], line, line[1:])
    ]
    cumulative = [0.0]
    for increment in increments:
        cumulative.append(cumulative[-1] + increment)
    cumulative_error = max(abs(a - b) for a, b in zip(cumulative, stored))
    require(cumulative_error < 1e-12, "Stored cumulative values mismatch")
    total = cumulative[-1]
    require(abs(total - summary["full_cell_residual_e"]) < 1e-12, "Total mismatch")

    def integral_at(boundary):
        require(z[0] - 1e-12 <= boundary <= z[-1] + 1e-12, "Boundary outside cell")
        if abs(boundary - z[0]) < 1e-12:
            return 0.0
        if abs(boundary - z[-1]) < 1e-12:
            return total
        boundary = min(max(boundary, z[0]), z[-1])
        if boundary == z[-1]:
            return total
        k = max(0, bisect.bisect_right(z, boundary) - 1)
        h = boundary - z[k]
        width = z[k + 1] - z[k]
        # The line density is piecewise linear, so its partial integral is quadratic.
        return (
            cumulative[k]
            + line[k] * h
            + 0.5 * (line[k + 1] - line[k]) * h * h / width
        )

    for region in summary["regions"]:
        obtained = integral_at(region["hi_A"]) - integral_at(region["lo_A"])
        require(abs(obtained - region["delta_e"]) < 1e-12, "Archived region mismatch")

    positive_parts = []
    for width, a, b in zip((b - a for a, b in zip(z, z[1:])), line, line[1:]):
        if a >= 0 and b >= 0:
            positive_parts.append(0.5 * (a + b) * width)
        elif a <= 0 and b <= 0:
            positive_parts.append(0.0)
        else:
            zero_fraction = -a / (b - a)
            positive_width = width * (zero_fraction if a > 0 else 1 - zero_fraction)
            positive_parts.append(0.5 * max(a, b) * positive_width)
    positive_1d = math.fsum(positive_parts)
    negative_1d = total - positive_1d
    require(positive_1d <= summary["positive_3d_e"] + 1e-12, "Invalid 1D/3D ordering")

    cuts = [0.0, 4.0, 4.63, 4.9, 4.95, 5.0, 5.05, 5.1, 5.37, 6.0, 10.0]
    fixtures = []
    for cut in cuts:
        left = integral_at(cut)
        right = total - left
        require(abs(left + right - total) < 1e-12, "Complement mismatch")
        fixtures.append(
            {"boundary_A": cut, "left_delta_e": left, "right_delta_e": right}
        )
    DATA.mkdir(parents=True)
    with (DATA / "boundary-reference.csv").open("w", newline="") as handle:
        writer = csv.DictWriter(handle, fieldnames=list(fixtures[0]))
        writer.writeheader()
        writer.writerows(fixtures)

    peak = max(rows, key=lambda r: r["linear_e_A"])
    trough = min(rows, key=lambda r: r["linear_e_A"])
    result = {
        "status": "pass",
        "method": "exact integration of each piecewise-linear line-density segment",
        "samples_including_periodic_endpoint": len(rows),
        "area_factor_max_error_e_A": area_error,
        "cumulative_max_error_e": cumulative_error,
        "full_cell_delta_e": total,
        "positive_area_of_1d_profile_e": positive_1d,
        "negative_area_of_1d_profile_e": negative_1d,
        "positive_voxel_integral_3d_e": summary["positive_3d_e"],
        "negative_voxel_integral_3d_e": summary["negative_3d_e"],
        "profile_peak": {"z_A": peak["z_A"], "linear_e_A": peak["linear_e_A"]},
        "profile_trough": {"z_A": trough["z_A"], "linear_e_A": trough["linear_e_A"]},
        "boundary_fixtures": fixtures,
        "input_files": [str(args.planar), str(args.summary)],
        "plot_created": False,
        "raw_chgcar_reprocessed": False,
    }
    encoded = json.dumps(result, ensure_ascii=False, indent=2) + "\n"
    (DATA / "boundary-reference.json").write_text(encoded)
    print(f"samples={len(rows)}; full-cell residual={total:.12e} e")
    print(f"positive 1D={positive_1d:.10f} e; positive 3D={summary['positive_3d_e']:.10f} e")
    for fixture in fixtures:
        if fixture['boundary_A'] in (4.9, 5.0, 5.1):
            print(f"boundary={fixture['boundary_A']:.2f} A: left={fixture['left_delta_e']:+.12e} e; right={fixture['right_delta_e']:+.12e} e")
    print(f"checks=pass; wrote {DATA}/boundary-reference.csv and boundary-reference.json")


if __name__ == "__main__":
    main()
