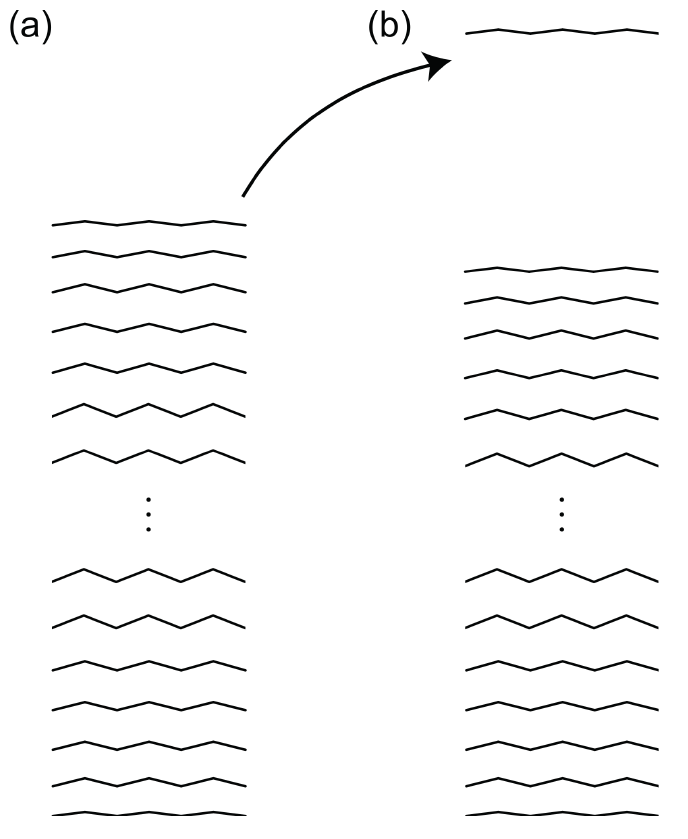

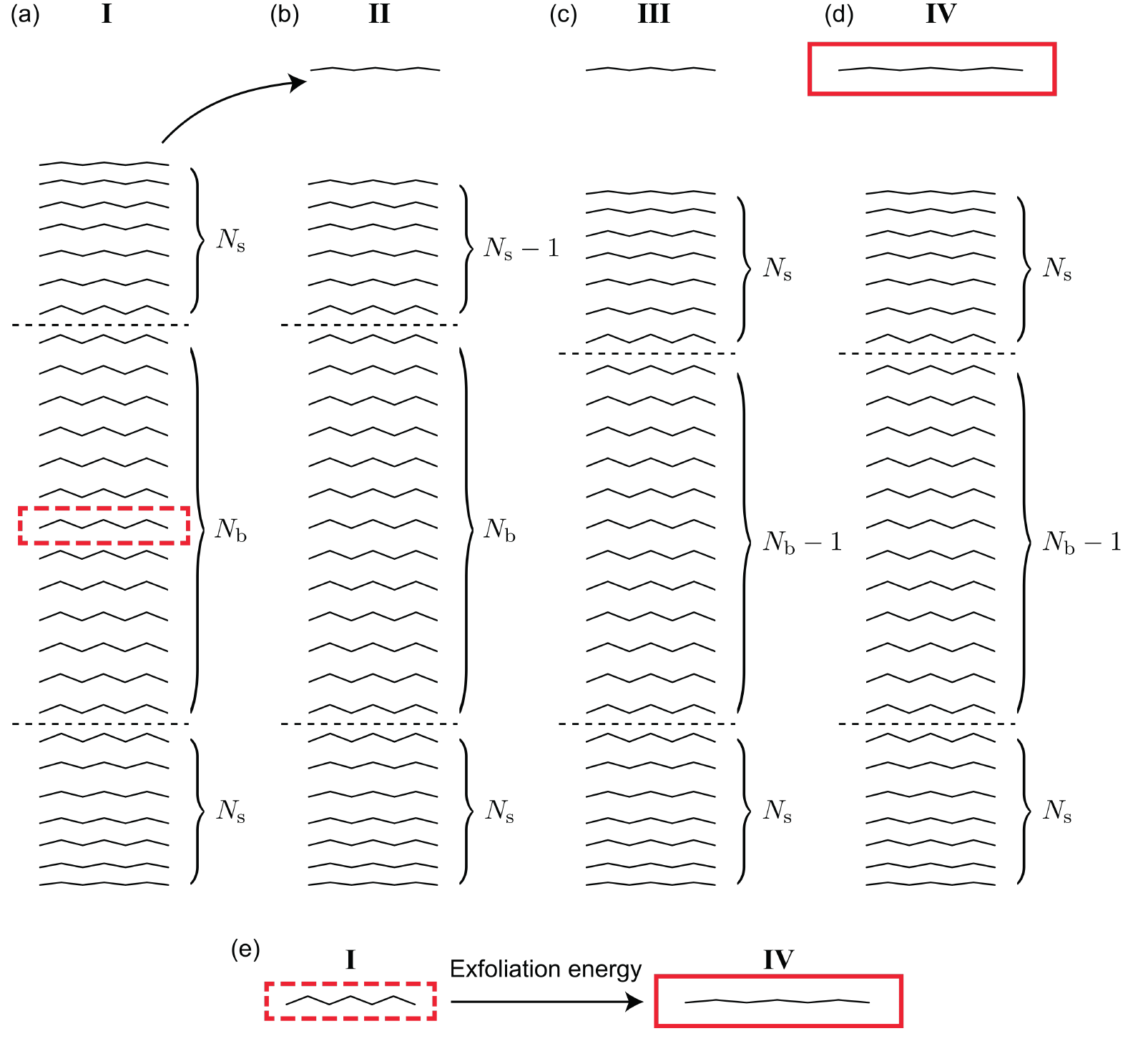

层间分离能

# Read the accepted CSV; no fit, interpolation, or new energy points.
if (!exists("data_root")) data_root = "."
if (!exists("out_root")) out_root = "."
data = data_root."/exfoliation.csv"
set encoding utf8
set datafile separator ","
set datafile columnheaders
set border 3
set tics out nomirror
set key off
do for [ext in "svg png pdf"] {
    if (ext eq "svg") { set terminal svg size 900,360 enhanced font "DejaVu Sans,11" }
    if (ext eq "png") { set terminal pngcairo size 900,360 enhanced font "DejaVu Sans,11" }
    if (ext eq "pdf") { set terminal pdfcairo size 9,3.6 enhanced font "DejaVu Sans,11" }
    set output out_root."/hfi2-separation-gnuplot.".ext
    set size 1,1
    set origin 0,0
    unset title
    set multiplot layout 1,2 margins 0.08,0.98,0.18,0.83 spacing 0.12,0.05 title "HfI2 | frozen six-layer separation"

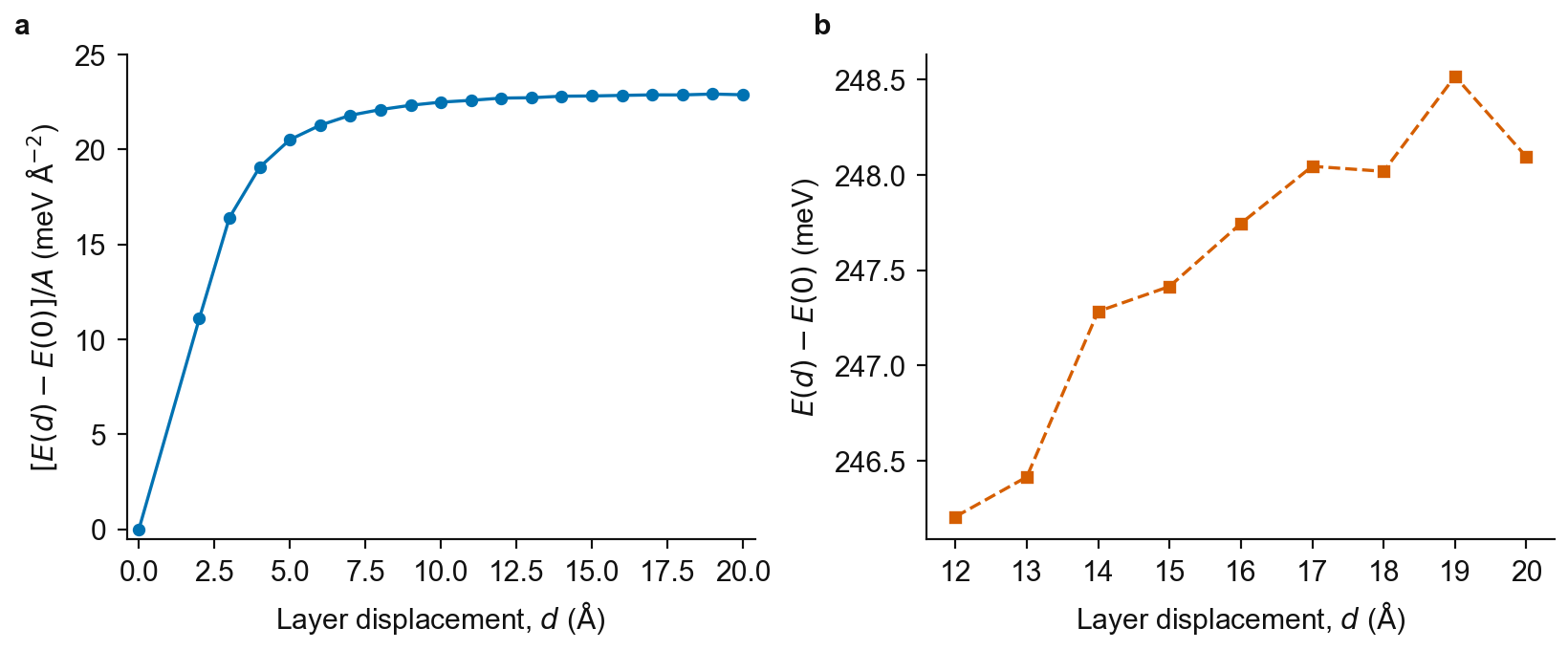

    set title "(a) Accepted separation points"
    set xlabel "Top-layer displacement d (Å)"
    set ylabel "[E(d)-E(0)]/A (meV Å^{-2})"
    set xrange [-0.4:20.4]
    set yrange [-0.5:25]
    plot data using 2:6 with linespoints pt 7 ps 0.55 lw 1 lc rgb "#0072B2"
    set title "(b) Large-distance detail"
    set ylabel "E(d)-E(0) (meV/cell)"
    set xrange [11.6:20.4]
    set yrange [*:*]
    plot data using 2:($2>=12 ? $5 : 1/0) with linespoints pt 5 ps 0.55 lw 1 dt 2 lc rgb "#D55E00"
    unset multiplot
    unset output
}
print "Read 20 accepted points; wrote hfi2-separation-gnuplot.svg/.png/.pdf"

from __future__ import print_function
import os, re, math, csv, json, hashlib

def digest(path):
    h=hashlib.sha256()
    with open(path,'rb') as f:
        for b in iter(lambda:f.read(1024*1024),b''):h.update(b)
    return h.hexdigest()

def read_poscar(path):
    lines=open(path).read().splitlines()
    scale=float(lines[1])
    if scale<=0:raise ValueError('Positive scalar POSCAR scale required')
    cell=[[float(x)*scale for x in line.split()[:3]] for line in lines[2:5]]
    species=lines[5].split();counts=list(map(int,lines[6].split()));nat=sum(counts)
    at=7
    if lines[at].lower().startswith('s'):at+=1
    mode=lines[at].lower();at+=1
    raw=[[float(x) for x in line.split()[:3]] for line in lines[at:at+nat]]
    if mode.startswith('d'):
        pos=[[sum(v[k]*cell[k][j] for k in range(3)) for j in range(3)] for v in raw]
    elif mode.startswith(('c','k')):
        pos=[[x*scale for x in v] for v in raw]
    else:raise ValueError('Unsupported coordinates')
    return cell,species,counts,pos

def area(cell):
    a,b=cell[:2]
    cross=[a[1]*b[2]-a[2]*b[1],a[2]*b[0]-a[0]*b[2],a[0]*b[1]-a[1]*b[0]]
    return math.sqrt(sum(x*x for x in cross))

base='raw'
rows=[];excluded=[];fingerprints={}
reference=read_poscar(os.path.join(base,'scf_eq','POSCAR'))
protocol=[digest(os.path.join(base,'scf_eq',f)) for f in ('INCAR','KPOINTS')]
expected_titles=None
for name in sorted(os.listdir(base)):
    folder=os.path.join(base,name)
    if not os.path.isdir(folder) or not name.startswith('scf_'):continue
    outpath=os.path.join(folder,'OUTCAR')
    if not os.path.isfile(outpath):
        excluded.append(dict(directory=name,reason='OUTCAR absent',energy_lines=0,ediff=0,normal_end=0))
        continue
    out=open(outpath).read()
    energies=re.findall(r'energy\s+without entropy=\s*([-\d.]+)\s+energy\(sigma->0\)\s*=\s*([-\d.]+)',out)
    ediff=out.count('aborting loop because EDIFF is reached')
    normal=out.count('General timing and accounting')
    if len(energies)!=1 or ediff!=1 or normal!=1:
        excluded.append(dict(directory=name,reason='Incomplete static SCF',energy_lines=len(energies),ediff=ediff,normal_end=normal))
        continue
    if re.search(r'VERY BAD NEWS|BRMIX:|Error EDD|ZHEGV failed',out,re.I):
        raise ValueError(name+': electronic solver error')
    current=read_poscar(os.path.join(folder,'POSCAR'))
    if current[:3]!=reference[:3]:raise ValueError(name+': cell/species/counts changed')
    if [digest(os.path.join(folder,f)) for f in ('INCAR','KPOINTS')]!=protocol:
        raise ValueError(name+': input protocol differs')
    titles=re.findall(r'TITEL\s*=\s*(.*)',out)
    if expected_titles is None:expected_titles=titles
    if titles!=expected_titles:raise ValueError(name+': output pseudopotentials differ')
    if float(re.findall(r'NELECT\s*=\s*([-\d.]+)',out)[-1])!=156.:
        raise ValueError(name+': unexpected electron count')
    shifts=[[v-w for v,w in zip(p,q)] for p,q in zip(current[3],reference[3])]
    d=0. if name=='scf_eq' else float(name.split('scf_d')[1])
    for index,vec in enumerate(shifts):
        expected=d if index in (10,11,17) else 0.
        if max(abs(vec[0]),abs(vec[1]),abs(vec[2]-expected))>1e-7:
            raise ValueError(name+': incorrect frozen-layer displacement')
    energy=float(energies[0][0]);sigma=float(energies[0][1])
    ez=[v[2] for v in current[3]]
    outer_gap=current[0][2][2]-(max(ez)-min(ez))
    fingerprints[name]={f:digest(os.path.join(folder,f)) for f in
                       ('INCAR','KPOINTS','POSCAR','OUTCAR','OSZICAR','script_std')
                       if os.path.isfile(os.path.join(folder,f))}
    rows.append(dict(directory=name,d_A=d,energy_without_entropy_eV=energy,
                     energy_sigma0_eV=sigma,outer_periodic_gap_A=outer_gap))
rows.sort(key=lambda row:row['d_A'])
if len(rows)!=20 or [row['d_A'] for row in rows]!=[0.]+list(map(float,range(2,21))):
    raise ValueError('Expected exactly the verified 20-point set')
area_A2=area(reference[0]);e0=rows[0]['energy_without_entropy_eV']
for row in rows:
    row['delta_E_meV']=1000*(row['energy_without_entropy_eV']-e0)
    row['W_meV_A2']=row['delta_E_meV']/area_A2
    row['W_J_m2']=row['W_meV_A2']*.01602176634
keys=['directory','d_A','energy_without_entropy_eV','energy_sigma0_eV','delta_E_meV','W_meV_A2','W_J_m2','outer_periodic_gap_A']
with open('exfoliation.csv','w') as f:
    w=csv.DictWriter(f,keys,lineterminator='\n');w.writeheader();w.writerows(rows)
with open('excluded.csv','w') as f:
    w=csv.DictWriter(f,['directory','reason','energy_lines','ediff','normal_end'],lineterminator='\n')
    w.writeheader();w.writerows(excluded)
summary=dict(natoms=18,species=reference[1],counts=reference[2],area_A2=area_A2,
             c_A=reference[0][2][2],moved_atom_indices_1based=[11,12,18],
             accepted_points=len(rows),excluded_points=len(excluded),
             energy_reference_eV=e0,energy_definition='energy without entropy',
             geometry_scope='Frozen prototype-derived HfI2 structure; no accepted HfI2 relaxation in this dataset',
             final_point=rows[-1],tail_16_to_20_range_meV=max(r['delta_E_meV'] for r in rows[-5:])-min(r['delta_E_meV'] for r in rows[-5:]),
             output_potential_titles=expected_titles,sha256=fingerprints)
with open('summary.json','w') as f:json.dump(summary,f,indent=2,sort_keys=True)
print('accepted=%d excluded=%d atoms=18 moved=11,12,18'%(len(rows),len(excluded)))
print('area=%.12f A^2 c=%.12f A'%(area_A2,reference[0][2][2]))
for row in rows:
    print('d=%4.1f A E=%14.8f eV dE=%10.5f meV W=%10.6f meV/A^2 outer_gap=%9.5f A'%
          (row['d_A'],row['energy_without_entropy_eV'],row['delta_E_meV'],row['W_meV_A2'],row['outer_periodic_gap_A']))
print('16--20 A energy range=%.5f meV'%summary['tail_16_to_20_range_meV'])
for row in excluded:
    print('excluded %s: %s energy=%d EDIFF=%d end=%d'%(row['directory'],row['reason'],row['energy_lines'],row['ediff'],row['normal_end']))

#!/usr/bin/env python3
"""Validate HfI2 separation-energy bookkeeping and emit a focused review table."""

from __future__ import annotations

import argparse
import csv
import math
from pathlib import Path

EV_A2_TO_J_M2 = 16.02176634
EXPECTED_AREA_A2 = 10.848221494425957
TAIL_DISTANCES = {16.0, 17.0, 18.0, 19.0, 20.0}


def read_csv(path: Path) -> tuple[list[str], list[dict[str, str]]]:
    with path.open(newline="", encoding="utf-8") as handle:
        reader = csv.DictReader(handle)
        if reader.fieldnames is None:
            raise ValueError(f"{path}: missing CSV header")
        return reader.fieldnames, list(reader)


def poscar_area(path: Path) -> float:
    lines = path.read_text(encoding="utf-8").splitlines()
    if len(lines) < 5:
        raise ValueError(f"{path}: incomplete POSCAR lattice")
    scale = float(lines[1].split()[0])
    if scale <= 0:
        raise ValueError(f"{path}: expected positive POSCAR scale factor")
    a = [float(value) * scale for value in lines[2].split()[:3]]
    b = [float(value) * scale for value in lines[3].split()[:3]]
    if len(a) != 3 or len(b) != 3:
        raise ValueError(f"{path}: malformed first two lattice vectors")
    cross = (
        a[1] * b[2] - a[2] * b[1],
        a[2] * b[0] - a[0] * b[2],
        a[0] * b[1] - a[1] * b[0],
    )
    area = math.sqrt(sum(value * value for value in cross))
    if not math.isfinite(area) or area <= 0:
        raise ValueError(f"{path}: non-positive/non-finite in-plane area")
    return area


def write_csv(path: Path, header: list[str], rows: list[dict[str, str]]) -> None:
    with path.open("w", newline="", encoding="utf-8") as handle:
        writer = csv.DictWriter(handle, fieldnames=header)
        writer.writeheader()
        writer.writerows(rows)


def main() -> None:
    parser = argparse.ArgumentParser()
    parser.add_argument("--accepted", type=Path, default=Path("exfoliation.csv"))
    parser.add_argument("--excluded", type=Path, default=Path("excluded.csv"))
    parser.add_argument("--poscar", type=Path, default=Path("POSCAR"))
    parser.add_argument("--outdir", type=Path, default=Path("review"))
    args = parser.parse_args()

    accepted_header, accepted_rows = read_csv(args.accepted)
    excluded_header, excluded_rows = read_csv(args.excluded)
    area = poscar_area(args.poscar)
    if not math.isclose(area, EXPECTED_AREA_A2, rel_tol=0, abs_tol=2e-9):
        raise ValueError(
            f"{args.poscar}: area {area:.12f} A^2 differs from reviewed cell "
            f"{EXPECTED_AREA_A2:.12f} A^2"
        )
    required = {
        "directory", "d_A", "energy_without_entropy_eV", "energy_sigma0_eV",
        "delta_E_meV", "W_meV_A2", "W_J_m2", "outer_periodic_gap_A",
    }
    missing = required - set(accepted_header)
    if missing:
        raise ValueError(f"{args.accepted}: missing columns {sorted(missing)}")
    for required_name in ("directory", "reason", "energy_lines", "ediff", "normal_end"):
        if required_name not in excluded_header:
            raise ValueError(f"{args.excluded}: missing column {required_name}")

    by_distance: dict[float, dict[str, str]] = {}
    for row in accepted_rows:
        d = float(row["d_A"])
        if d in by_distance:
            raise ValueError(f"{args.accepted}: duplicate accepted d={d:g} A")
        for column in required - {"directory"}:
            value = float(row[column])
            if not math.isfinite(value):
                raise ValueError(f"{args.accepted}: non-finite {column} at d={d:g} A")
        by_distance[d] = row
    expected_distances = {0.0} | set(float(d) for d in range(2, 21))
    if set(by_distance) != expected_distances:
        missing_d = sorted(expected_distances - set(by_distance))
        unexpected_d = sorted(set(by_distance) - expected_distances)
        raise ValueError(
            f"accepted d set differs: missing={missing_d}, unexpected={unexpected_d}"
        )
    if by_distance[0.0]["directory"] != "scf_eq":
        raise ValueError("the sole d=0 reference must be scf_eq")

    e0 = float(by_distance[0.0]["energy_without_entropy_eV"])
    recalculated: dict[float, tuple[float, float, float]] = {}
    for d, row in by_distance.items():
        energy = float(row["energy_without_entropy_eV"])
        delta_e = energy - e0
        delta_mev = delta_e * 1000.0
        work_mev_a2 = delta_mev / area
        work_j_m2 = delta_e / area * EV_A2_TO_J_M2
        checks = (
            ("delta_E_meV", delta_mev, 2e-5),
            ("W_meV_A2", work_mev_a2, 2e-7),
            ("W_J_m2", work_j_m2, 2e-8),
        )
        for column, calculated, tolerance in checks:
            stored = float(row[column])
            if not math.isclose(calculated, stored, rel_tol=0, abs_tol=tolerance):
                raise ValueError(
                    f"d={d:g} A: recomputed {column}={calculated:.12g}, "
                    f"stored={stored:.12g}"
                )
        recalculated[d] = (delta_mev, work_mev_a2, work_j_m2)

    if len(accepted_rows) != 20 or len(excluded_rows) != 7:
        raise ValueError(
            f"reviewed dataset requires 20 accepted and 7 excluded; "
            f"found {len(accepted_rows)} and {len(excluded_rows)}"
        )
    excluded_by_name = {row["directory"]: row for row in excluded_rows}
    if len(excluded_by_name) != len(excluded_rows):
        raise ValueError(f"{args.excluded}: duplicate excluded directory")
    expected_d1 = {"scf_d1", "scf_d1.00"}
    if expected_d1 - set(excluded_by_name):
        raise ValueError(f"nominal d=1 A exclusions are missing: {sorted(expected_d1 - set(excluded_by_name))}")
    if excluded_by_name["scf_d1"]["reason"] != "OUTCAR absent":
        raise ValueError("scf_d1 exclusion reason no longer matches the reviewed record")
    if excluded_by_name["scf_d1.00"]["reason"] != "Incomplete static SCF":
        raise ValueError("scf_d1.00 exclusion reason no longer matches the reviewed record")

    selected = [0.0, 2.0, 16.0, 17.0, 18.0, 19.0, 20.0]
    selected_rows: list[dict[str, str]] = []
    for d in selected:
        row = by_distance[d]
        delta_mev, work_mev_a2, work_j_m2 = recalculated[d]
        selected_rows.append({
            "directory": row["directory"],
            "d_A": f"{d:.1f}",
            "energy_without_entropy_eV": row["energy_without_entropy_eV"],
            "delta_E_meV": f"{delta_mev:.8f}",
            "W_meV_A2": f"{work_mev_a2:.8f}",
            "W_J_m2": f"{work_j_m2:.10f}",
            "outer_periodic_gap_A": row["outer_periodic_gap_A"],
        })

    args.outdir.mkdir(parents=True, exist_ok=True)
    table_path = args.outdir / "hfi2-selected-separation-review.csv"
    exclusion_path = args.outdir / "hfi2-exclusion-review.csv"
    report_path = args.outdir / "hfi2-separation-review.md"
    write_csv(table_path, [
        "directory", "d_A", "energy_without_entropy_eV", "delta_E_meV",
        "W_meV_A2", "W_J_m2", "outer_periodic_gap_A",
    ], selected_rows)
    write_csv(exclusion_path, excluded_header, excluded_rows)

    tail_energies = [float(by_distance[d]["energy_without_entropy_eV"]) for d in sorted(TAIL_DISTANCES)]
    tail_spread_mev = (max(tail_energies) - min(tail_energies)) * 1000.0
    step_19_20_mev = (
        float(by_distance[20.0]["energy_without_entropy_eV"])
        - float(by_distance[19.0]["energy_without_entropy_eV"])
    ) * 1000.0
    w20 = recalculated[20.0][2]
    report_path.write_text(
        "# HfI2 frozen-slab separation review\n\n"
        f"- POSCAR area: {area:.12f} Ų.\n"
        f"- Accepted scan points: {len(accepted_rows)}; excluded directories: {len(excluded_rows)}.\n"
        "- Accepted distances: d=0 and d=2…20 Å. The nominal d=1 Å attempts are not accepted: "
        "scf_d1 has no OUTCAR and scf_d1.00 is an incomplete static SCF.\n"
        "- Energy field used throughout: OUTCAR energy without entropy, eV/cell.\n"
        f"- At d=20 Å, ΔE={recalculated[20.0][0]:.8f} meV/cell and W={w20:.10f} J/m².\n"
        f"- The d=16…20 Å five-point energy spread is {tail_spread_mev:.5f} meV/cell; "
        f"the d=19→20 Å change is {step_19_20_mev:.5f} meV/cell.\n\n"
        "Interpretation: these values describe the frozen six-layer, prototype-derived slab under "
        "one specified layer-separation operation. The d=0 reference is itself a six-layer slab, "
        "not a bulk calculation. The finite-distance energy and non-monotone high-distance spread "
        "do not establish a bulk-referenced exfoliation energy or a converged asymptote.\n",
        encoding="utf-8",
    )
    print(f"accepted={len(accepted_rows)} excluded={len(excluded_rows)} area={area:.12f} A^2")
    print(f"d20: delta_E={recalculated[20.0][0]:.8f} meV/cell W={w20:.10f} J/m^2")
    print(f"d16-20 energy spread={tail_spread_mev:.5f} meV/cell; d19->20={step_19_20_mev:.5f} meV/cell")
    print(table_path)
    print(exclusion_path)
    print(report_path)


if __name__ == "__main__":
    main()
